Housing:

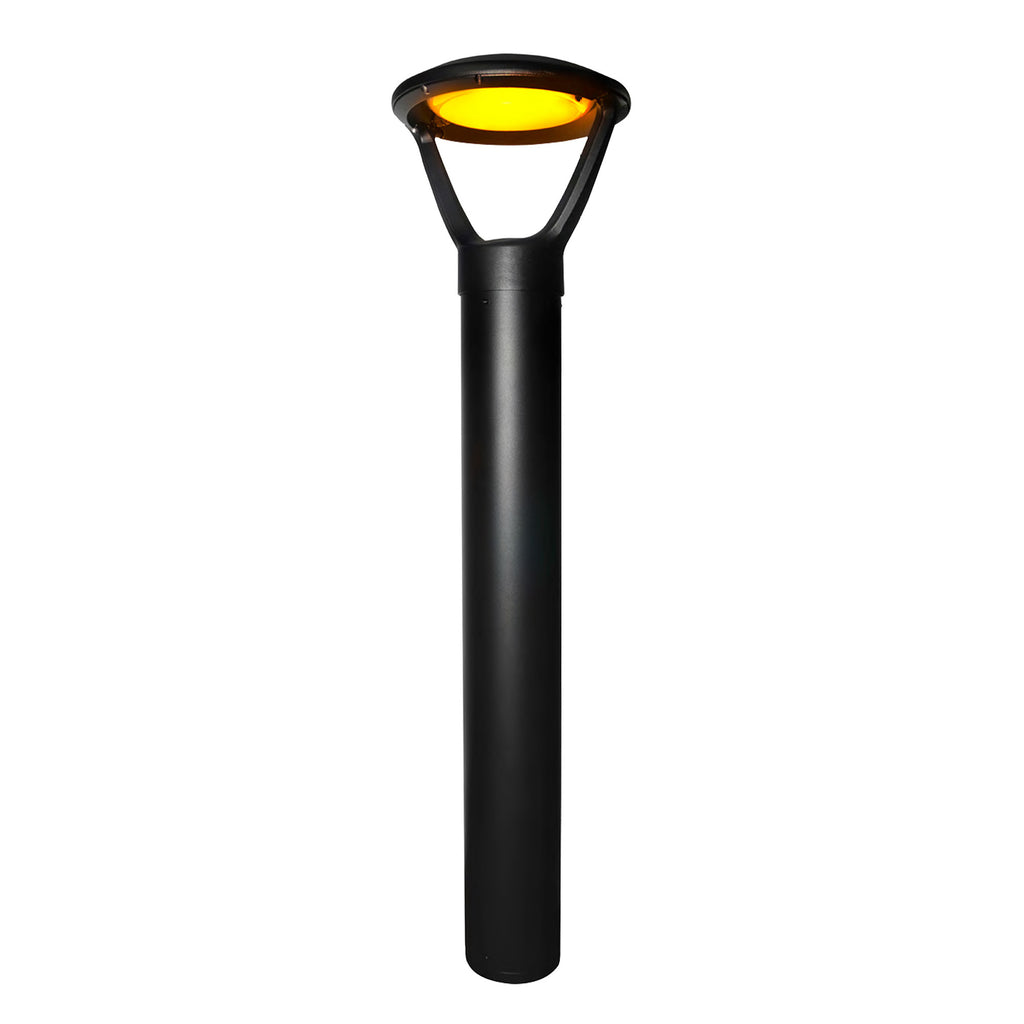

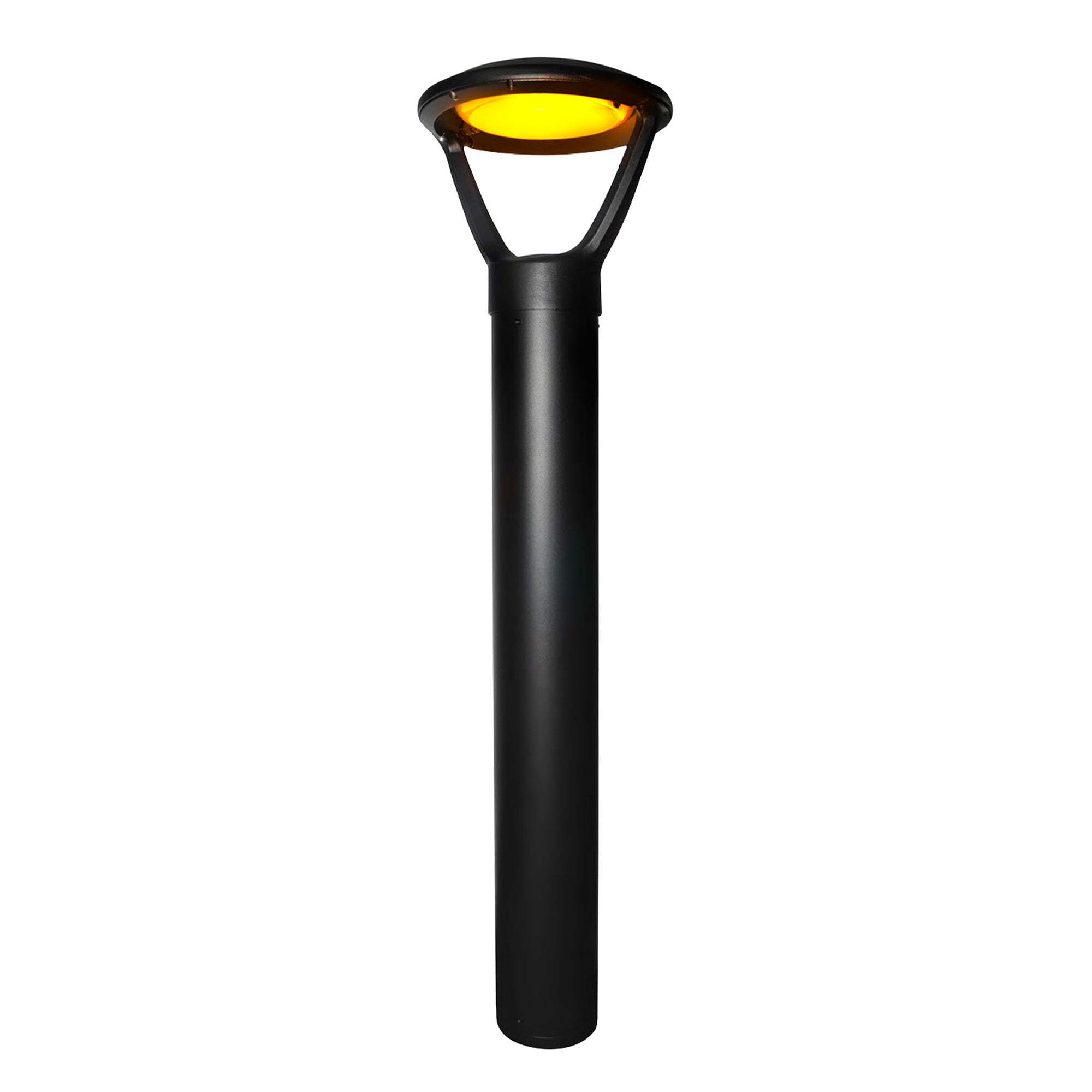

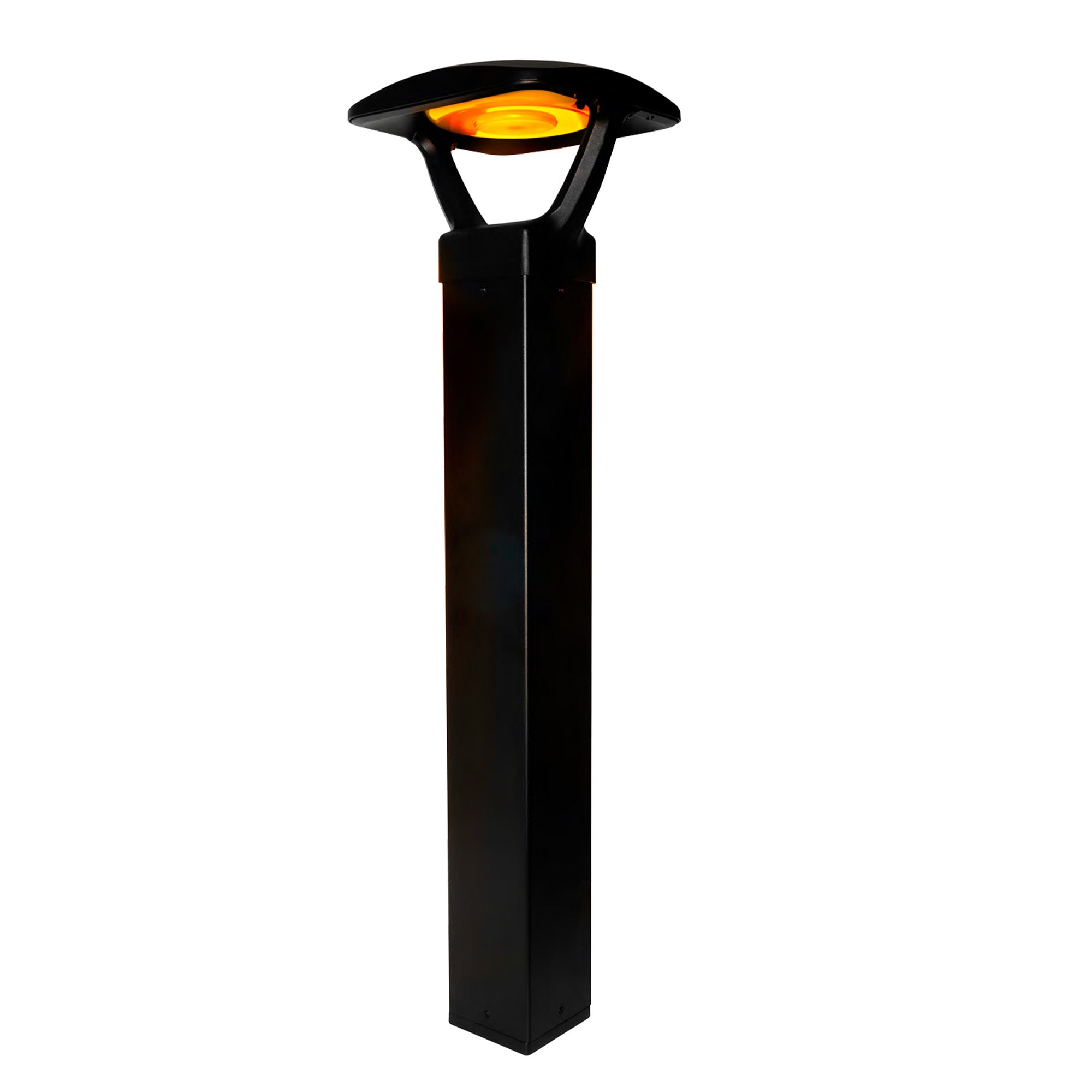

Extruded Aluminum Housing with Flush Mounting Base, Sand Cast Twin Arm Head,
Sealed Driver Compartment.
Listing & Ratings:
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750
IP66 Sealed LED Compartment.
Finish:
Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion
Coating. Custom Colors Available Upon Request.
Lens:
SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Inner Lens to
Seal LED Array.

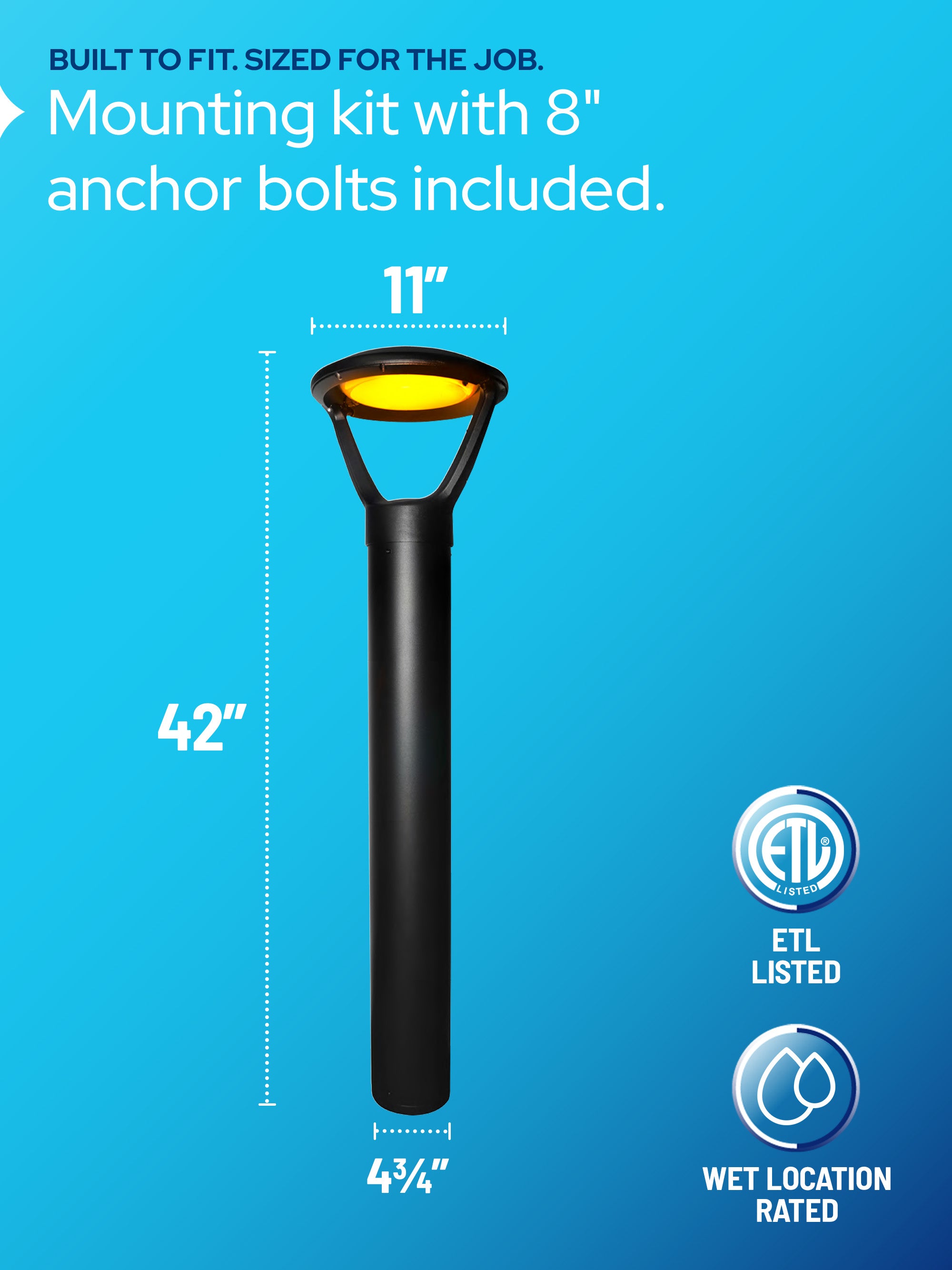

Mounting Options:

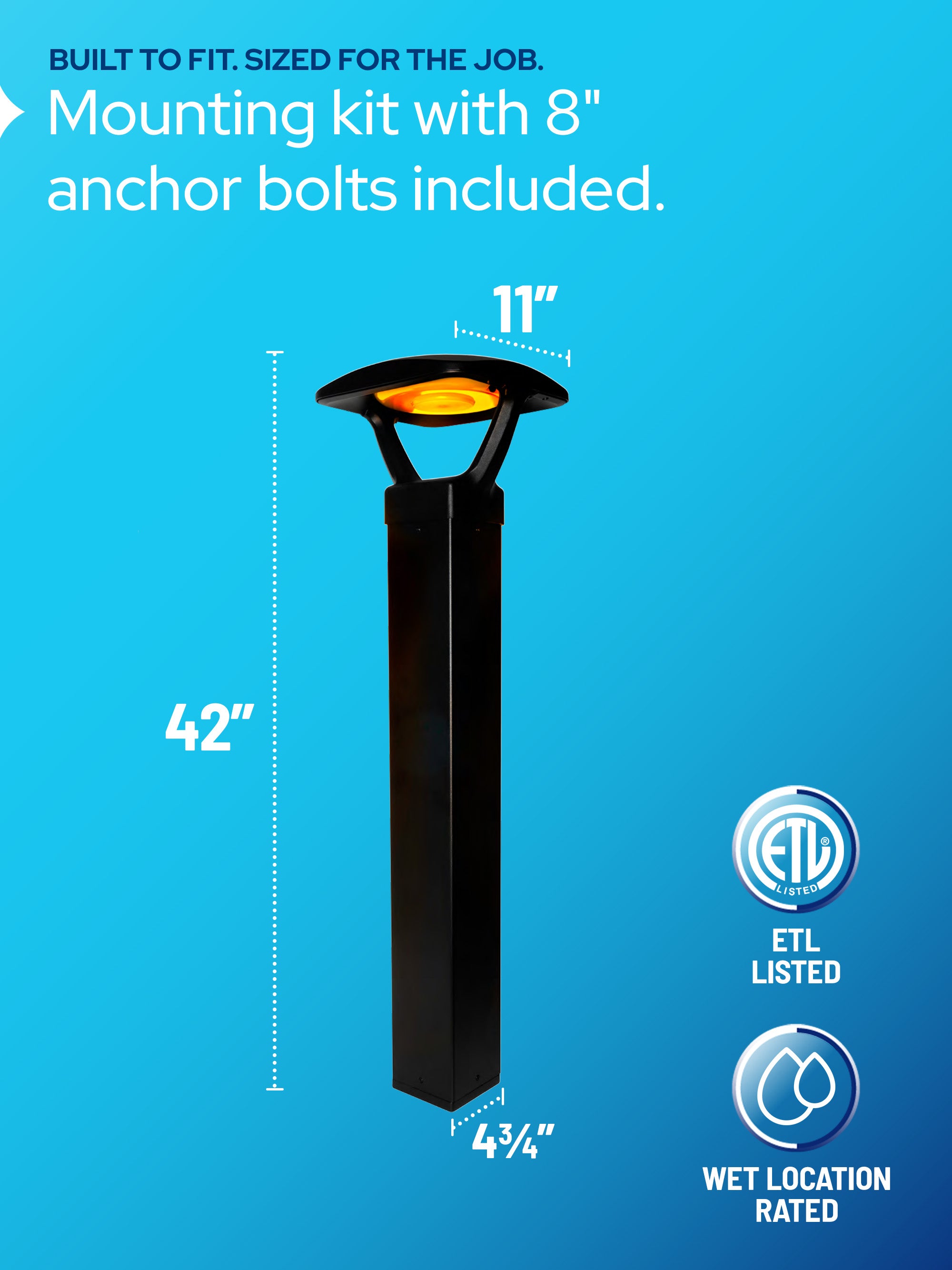

Mounting Kit with 8 ̋ Anchor Bolts, Included.

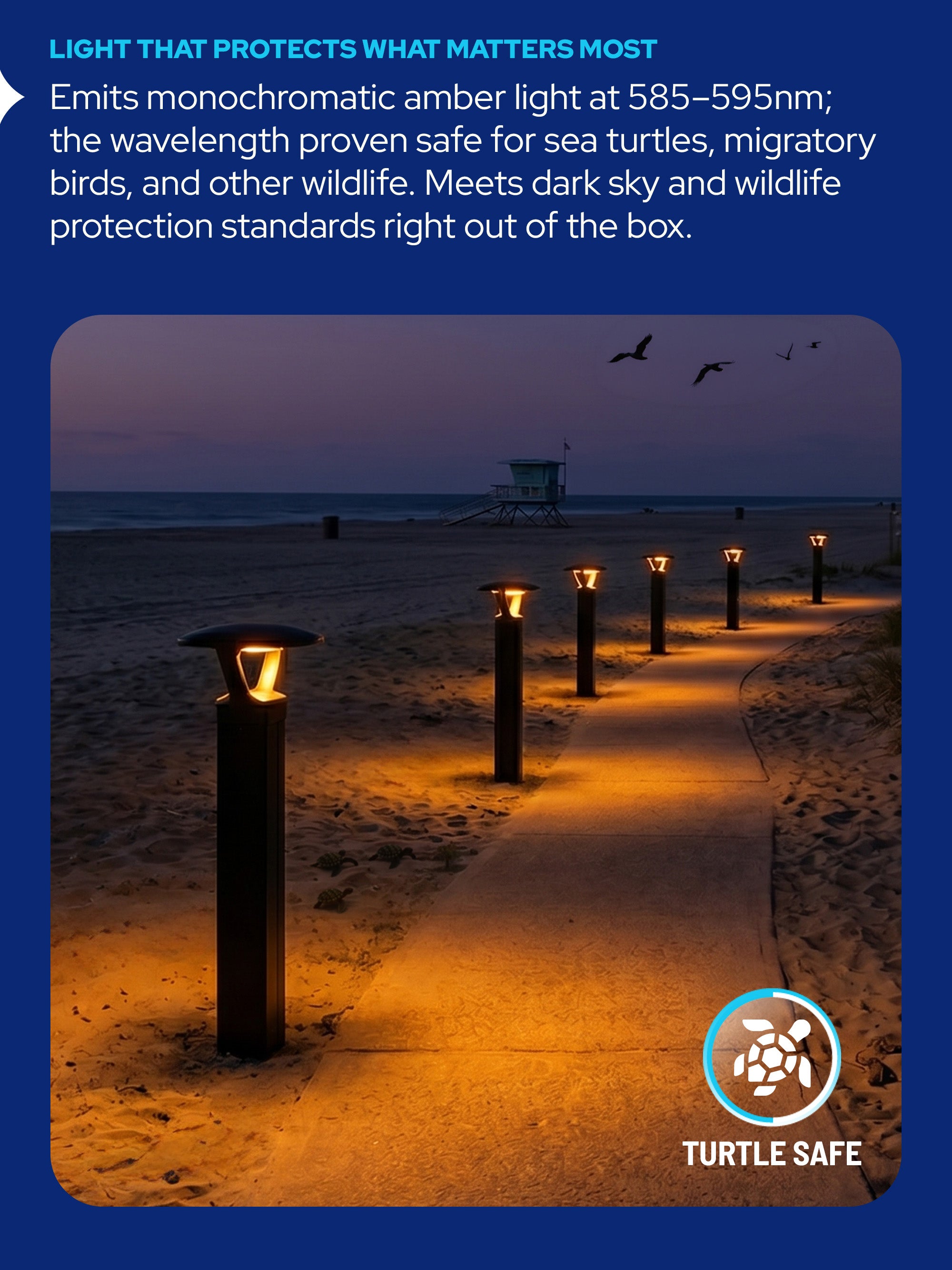

AmberLED:
Aluminum Boards
Wattage:
17w: Array: 16.5w, System: 18.7w
Driver:
Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard
Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100%
to 10%; Dimming Source Current is 150 Microamps.
Controls:
Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally
Wired for Switching and/or 1-10V Dimming Within the Housing. Please consult factory for
remote direct wired interface of 1-10V Dimming, fixtures are not wired for remote control
connection standard and may not be available in this configuration. Fixtures are NOT
designed for use with line voltage dimmers.
Warranty:
5-Year Warranty for -40°C to +50°C Environment.
