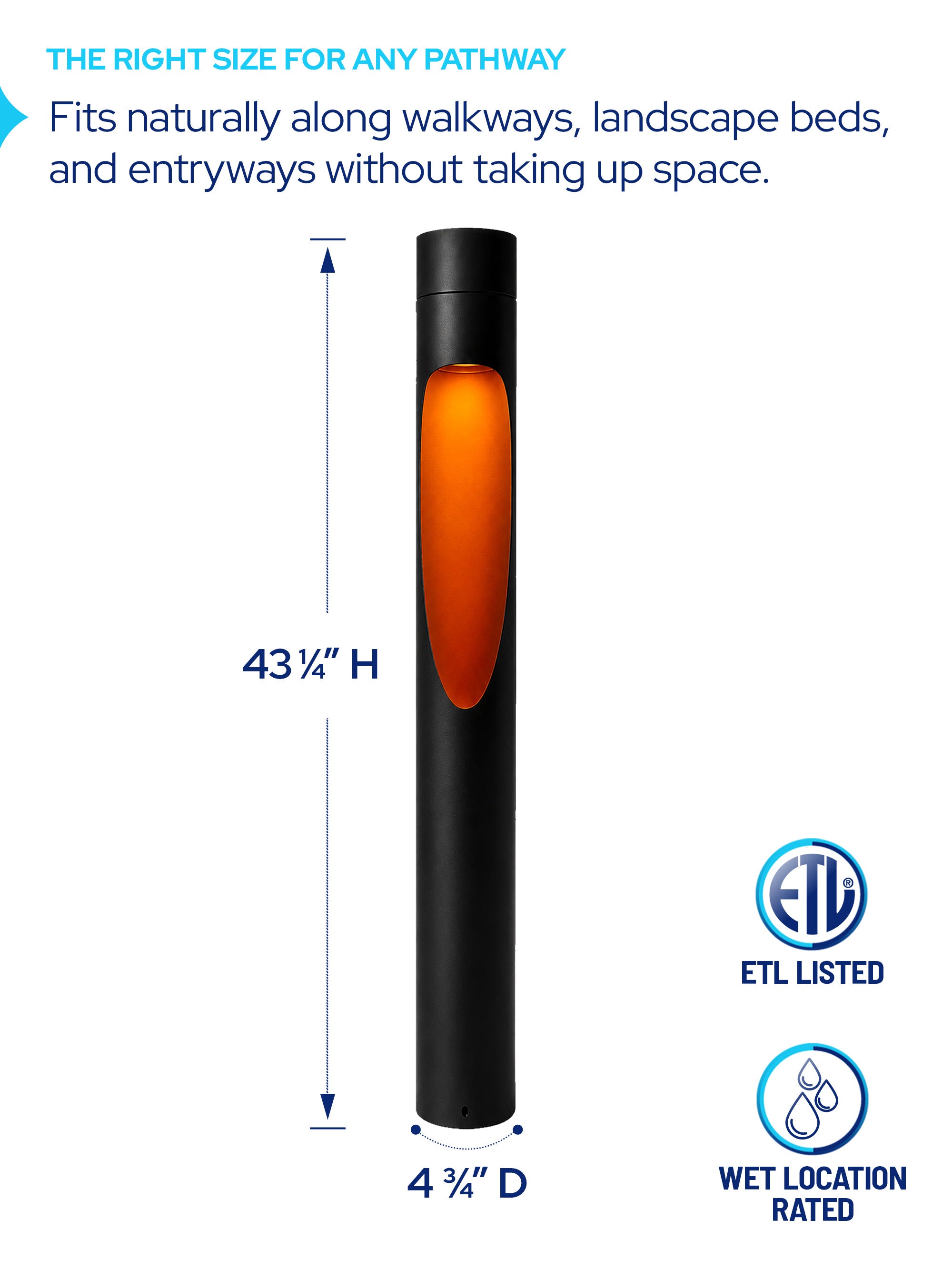

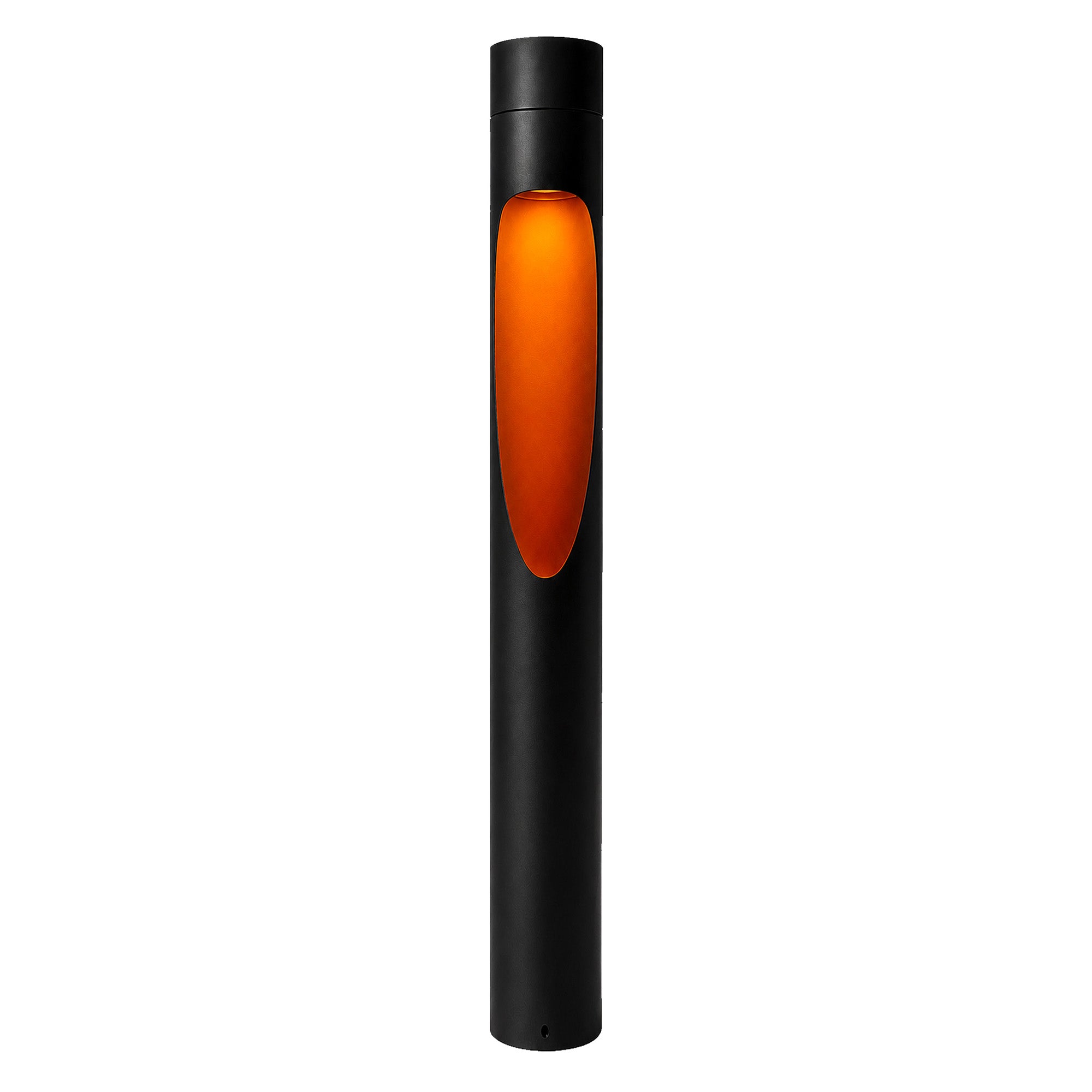

Housing:
Cast and Extruded Aluminum Housing with Flush Mounting Base, Flat Top.
Listing & Ratings:
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish:
Textured Architectural Powdercoat Finish Over a Chromate Conversion Coating. Custom
Colors Available Upon Request.
Lens:

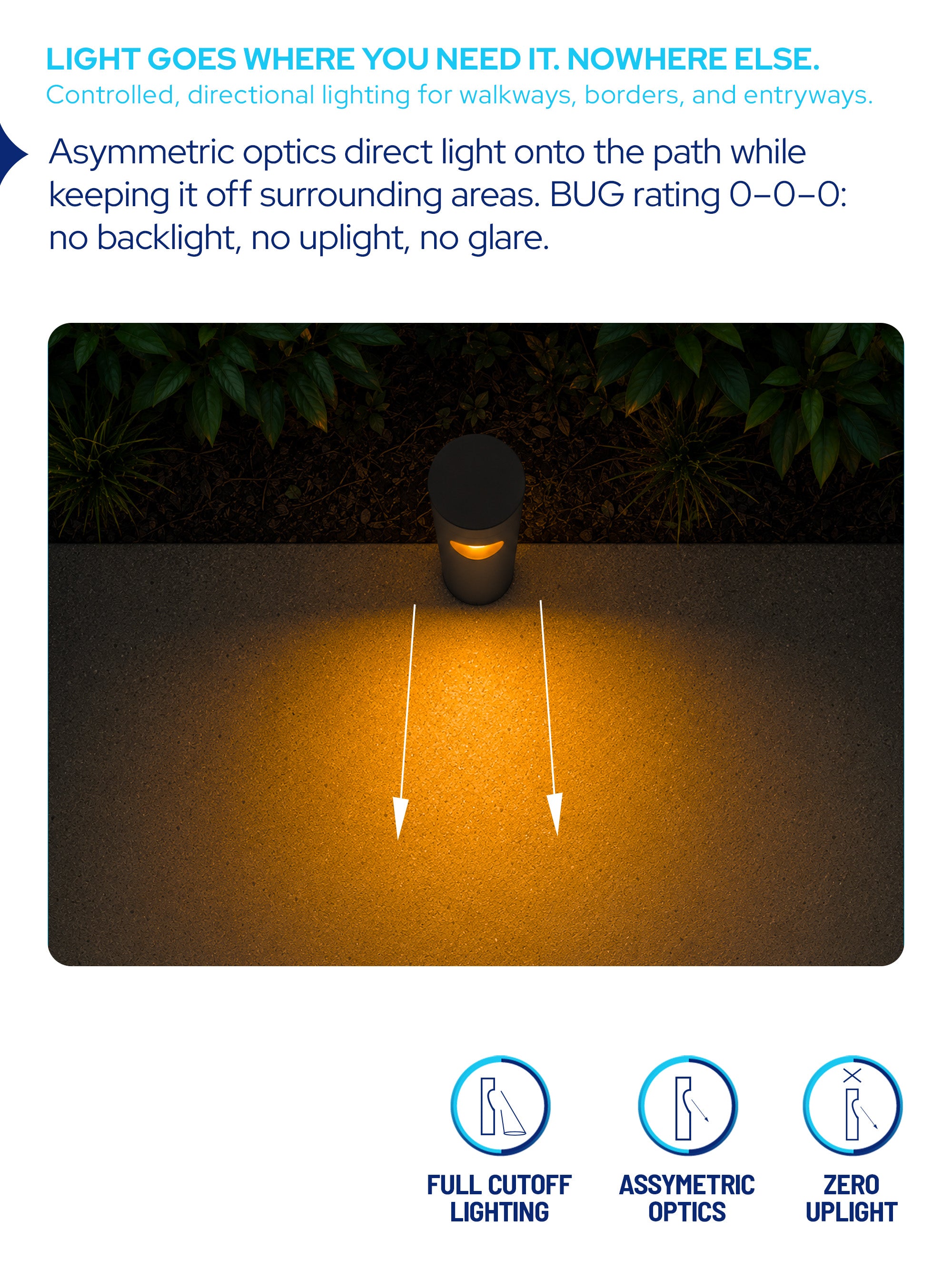

Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens
Mounting Options:
Mounting Kit with 8˝ Zinc-Plated Anchor Bolts, Included.
AmberLED LED:
Aluminum Boards

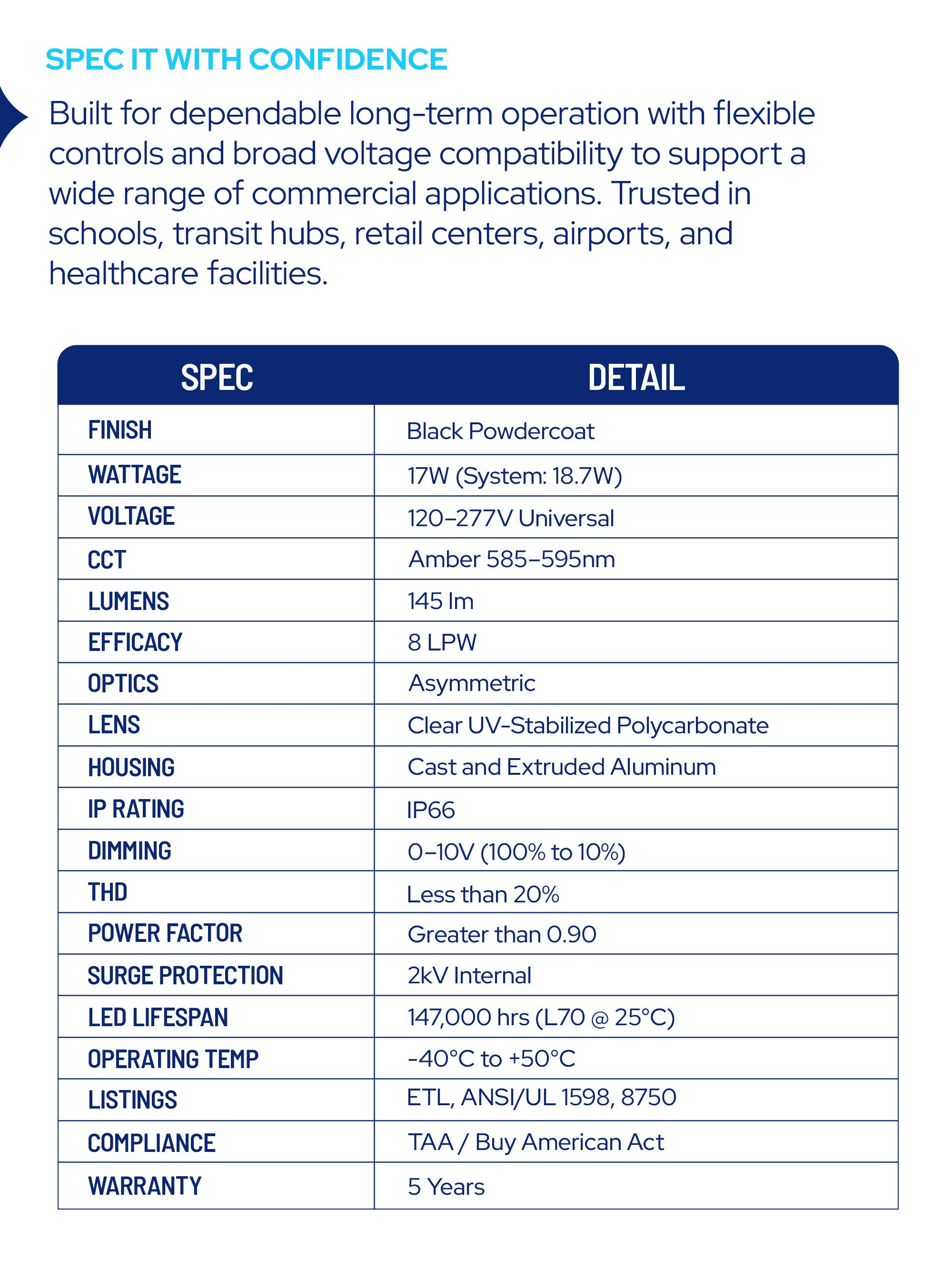

Wattage:
17w: Array: 17w, System: 18.7w
Driver:
Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard
Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100%
to 10%; Dimming Source Current is 150 Microamps.
Warranty:
5-Year Warranty for -40°C to +50°C Environment
